NTW HTW Diamond Core Barrel Backend Efficient Head Assembly

BTW NTW HTW Wireline Core Baarrel, Backend Efficient Wireline Surface Head Assembly

Wireline drilling is the special method of removing the core. When the driller wants to remove core from a conventional core drill, the entire core barrel has to be removed from the hole. This is time-consuming, as each rod has to be removed one at a time. With wireline drilling, a barrel of core can be removed from the bottom of the hole without removing the rod string. When the driller wants to remove the core, an overshot is lowered on the end of a wireline. The overshot attaches to the back of the core barrel inner tube and the wireline is pulled back and the inner tube disengages itself from the barrel.

Core sizes:

Advantages:

1. Faster coring at greater depths

2. Good stability due to constant diameter of the drill string

3. Excellent hydraulics

4. Good core recovery

Wireline double core barrel consists of:

1. Head Assembly

2. Inner Tube: 1.5m or 3.0m

3. Stop Ring

4. Core Lifter

5. Core Lifter Case

6. Locking Coupling

7. Adapter Coupling

8. Landing Ring

9. Outer Tube: 1.5m or 3.0m

10. Inner Tube Stabilizer

11. Thread Protector

SIZE:

Wireline series: Geobor S, WLA, WLB, WLN, WLH, WLP, WLB3, WLN3, WLH3, WLP3, WLN2, AQ, BQ, NQ, HQ, PQ, SQ, PQ3, HQ3, NQ3, BQ3, NQ2, WL-56, WL-66, WL-76

T2 series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101

TT series: TT 46, TT 56

T6 series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146

T6S series: T6S 76, T6S 86, T6S 116, T6S 131, T6S 146

B series: B46, B56, B66, B76, B86, B101, B116, B131, B146

MLC series: NMLC, HMLC

LTK series: LTK48, LTK60

WF series: HWF, PWF, SWF, UWF, ZWF

WT series: RWT, EWT, AWT, BWT, NWT, HWT(Single Tube, Double Tube)

WG series: EWG, AWG, BWG, NWG, HWG(Single Tube, Double Tube)

WM series: EWM, AWM, BWM, NWM, HWM

Other sizes: AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F, BTW, TBW

Chinese standard: 56mm, 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm, 275mm

Our Services:

Ø Provide the technical design and solutions;

Ø Designing and manufacturing of non-standard equipment;

Ø Professional technical training and guidance on site according to the contract;

Ø Supply accessories at any time;

Ø Tele-technical consulting and services;

Ø Other special technical service according to client's requirements.

We specialized in producing of varies diamond drilling tools, such as impregnated/surface-set diamond core bits, diamond casing shoes, diamond rod shoes, reaming shells, TC core bits/casing shoes/TC rod shoes, PDC bits, Thin Wall Bits, core lifters, core lifter cases, core barrels, and kinds of drilling rigs etc.

With ISO certificate & quality control.

We are a leading company of C-Q series core barrel in China. Besides C-Q series core barrel, we still supply clients worldwide with China overshot assembly, hoisting plug, foot clamp, circle wrench, and so on. Both ISO9001: 2000 and CE certificates are available for our products, and our products have been quite popular among clients from Mongolia, Kazakhstan, Russia, Iran, Afghanistan, Oman, Turkey, Thailand, Vietnam, Myanmar, Malaysia, Indonesia, Singapore, Taiwan, Colombia, Mexico, Brazil, Canada, Australia, etc. Besides, OEM service is also available. If you need, please contact us freely.

HTW diamond core barrel

NTW diamond core barrel

Backend Efficient drilling core barrel

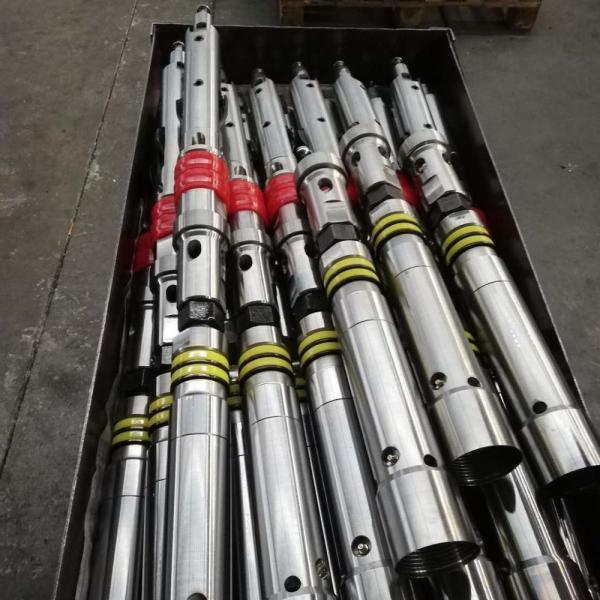

NTW HTW Diamond Core Barrel Backend Efficient Head Assembly Images
